Hi all,
When compiling our artifacts to yaml file, we are expecting the following schema format in our runtime parameter value : https://github.com/kubeflow/pipelines/blob/master/api/v2alpha1/pipeline_spec.proto#L677
When I first tried to upload my yaml file with the following schema above and try to run the pipeline template, the runtime value treats everything as a string instead of converting it to it's appropriate data type.
Here is the yaml file I tried to upload and run:
```
components:
input_data:
executorLabel: input_data_executor
inputDefinitions:
parameters:
allow_large_results_flag:
type: INT
allow_pre_computation_flag:
type: INT
create_disposition:
type: STRING
custom_config:
type: STRING
labels:
type: STRING
non_artifact_input_table:
type: STRING
union_bq_shards_flag:
type: INT
write_disposition:
type: STRING
outputDefinitions:
artifacts:
output_table:
artifactType:
instanceSchema: 'title: tfx.String
type: object
'
deploymentSpec:
executors:
input_data_executor:
container:
args:
- --executor_class_path
- tfx_common.components.bigquery.executor.BigQueryComponentExecutor
- --json_serialized_invocation_args
- '{{$}}'
- --project=projectid
- --region=us-central1
- --temp_location=gs://tmp
- --runner=DataflowRunner
- --experiments=use_runner_v2
- --sdk_container_image=image:latest
command:
- python
- -m
- tfx.orchestration.kubeflow.v2.container.kubeflow_v2_run_executor
image: image:latest
pipelineInfo:
name: hello-world
root:
dag:
tasks:
input_data:
cachingOptions:
enableCache: true
componentRef:
name: input_data
inputs:
parameters:
allow_large_results_flag:
runtimeValue:
constantValue:
intValue: 1
allow_pre_computation_flag:
runtimeValue:
constantValue:
intValue: 0
create_disposition:
runtimeValue:
constantValue:
stringValue: CREATE_IF_NEEDED
custom_config:
componentInputParameter: custom-config
labels:
runtimeValue:
constantValue:
stringValue: 'null'
non_artifact_input_table:
componentInputParameter: input-table
union_bq_shards_flag:
runtimeValue:
constantValue:
intValue: 0
write_disposition:
runtimeValue:
constantValue:
stringValue: WRITE_EMPTY
taskInfo:
name: input_data
inputDefinitions:
parameters:
custom-config:
type: STRING
input-table:
type: STRING
schemaVersion: 2.1.0
sdkVersion: tfx-1.12.0
```
Result:
But what I'm expecting is something like this (this run is submitted through the ai platform python library):
As an alternative solution to get the above screenshot (the expected one) - I changed the yaml file as a POC to the following:
```
components:
input_data:
executorLabel: input_data_executor
inputDefinitions:
parameters:
allow_large_results_flag:
type: INT
allow_pre_computation_flag:
type: INT
create_disposition:
type: STRING
custom_config:
type: STRING
labels:
type: STRING
non_artifact_input_table:
type: STRING
union_bq_shards_flag:
type: INT
write_disposition:
type: STRING
outputDefinitions:
artifacts:
output_table:
artifactType:
instanceSchema: 'title: tfx.String
type: object
'
deploymentSpec:
executors:
input_data_executor:
container:
args:
- --executor_class_path
- tfx_common.components.bigquery.executor.BigQueryComponentExecutor
- --json_serialized_invocation_args
- '{{$}}'
- --project=projectid
- --region=us-central1
- --temp_location=gs://tmp
- --runner=DataflowRunner
- --experiments=use_runner_v2
- --sdk_container_image=image:latest
command:
- python
- -m
- tfx.orchestration.kubeflow.v2.container.kubeflow_v2_run_executor
image: image:latest
pipelineInfo:
name: hello-world
root:
dag:
tasks:
input_data:
cachingOptions:
enableCache: true
componentRef:
name: input_data
inputs:
parameters:
allow_large_results_flag:
runtimeValue:
constantValue: 1
allow_pre_computation_flag:
runtimeValue:
constantValue: 0
create_disposition:
runtimeValue:
constantValue: CREATE_IF_NEEDED
custom_config:
componentInputParameter: custom-config
labels:
runtimeValue:
constantValue: 'null'
non_artifact_input_table:
componentInputParameter: input-table
union_bq_shards_flag:
runtimeValue:
constantValue: 0
write_disposition:
runtimeValue:
constantValue: WRITE_EMPTY
taskInfo:
name: input_data
inputDefinitions:
parameters:
custom-config:
type: STRING
input-table:
type: STRING
schemaVersion: 2.1.0
sdkVersion: tfx-1.12.0
```
and reran it however, I got this instead:

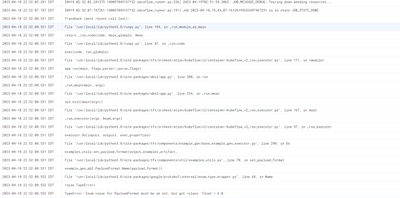

It ran successfully in this use case, but for other components we are expecting an `int` as `int` not `double`. For example we are running the chicago taxi pipeline as a template but we got the following error:
```
The replica workerpool0-0 exited with a non-zero status of 1. To find out more about why your job exited please check the logs: https://console.cloud.google.com/logs/viewer?project=636071587074&resource=ml_job%2Fjob_id%2F1886953...
```
My question here, is there a way in vertex when uploading our yaml file to pipeline template, we can specify the parameter type as well? if so how? if not, what are our alternate approach? (Note here, we are also using TFX to generate these artifacts)
