Error adding XSD script to SOAP Message Validation...

malashree · 08-12-2023 05:46 AM

When attaching SOAP Message Validation in API proxy, am getting error while adding .xsd file to soap message validation policy

1. When creating policy, if I select file type as "XSD" and Script file as "Create new script", am getting error message "Script has no source, it should be a new one, an imported one or an existing one."

2. When I pre-populate xsd script in resources and add my .xsd file to the resources, then when i come to add policy->select Soap message validation policy -> select existing .xsd script, the error says

"File extension does not match selected file type. Found: .xsd; Expected: .wsdl"

dchiesa1

Hi, thanks for reporting this. Can you attach a screenshot for each of these two errors?

ark123

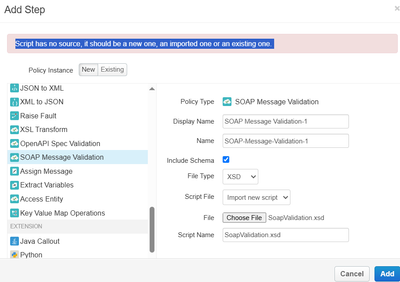

Hi , This is the screenshot of the following error

paul-wright

Hi,

Can you confirm which version of Apigee you are on? I gave this a try on Apigee X using the GCP Console based UI and the behavior works as expected. However, the screen shot looks like one of the older user experiences.

markjkelly

Hi @ark123 , @malashree ,

I was able to recreated the issue in an Apigee Edge SaaS organization. Is that the version of Apigee you are using? I will log this as a bug internally for our team to address. I'd also suggest log a support ticket so you can be kept up to date on this.

On a positive note I did find a workaround (detailed below) so you don't have to wait on a fix to be deployed.

Within the Apigee Edge UI, create a new SOAP Message Validation policy and uncheck the Include Schema box when you add the policy.
Delete the SOAP-Message-Validation-1.wsdl that gets created.
Add your XSD file as a new resource to the proxy.
Update the ResourceURL element within the policy you created in step 1, to reference the XSD you just created in step 3. For example: <ResourceURL>xsd://note-schema.xsd</ResourceURL>

See below for an example proxy I have working using this workaround for reference. The proxy follows this example.

MessageValidation policy:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<MessageValidation continueOnError="false" enabled="true" name="MV-Message-Validator">
    <DisplayName>MV-Message-Validator</DisplayName>
    <Properties/>
    <Source>request</Source>
    <ResourceURL>xsd://note-schema.xsd</ResourceURL>
</MessageValidation>

Schema (note-schema.xsd):

<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="note">
    <xs:complexType>
      <xs:sequence>
        <xs:element name="to" type="xs:string"/>
        <xs:element name="from" type="xs:string"/>
        <xs:element name="heading" type="xs:string"/>
        <xs:element name="body" type="xs:string"/>
      </xs:sequence>
    </xs:complexType>
  </xs:element>
</xs:schema>

Default.xml

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<ProxyEndpoint name="default">
    <PreFlow name="PreFlow">
        <Request>
            <Step>
                <Name>MV-Message-Validator</Name>
            </Step>
        </Request>
        <Response/>
    </PreFlow>
    <Flows/>
    <PostFlow name="PostFlow">
        <Request/>
        <Response/>
    </PostFlow>
    <HTTPProxyConnection>
        <BasePath>/message-validation-test</BasePath>
        <VirtualHost>secure</VirtualHost>
    </HTTPProxyConnection>
    <RouteRule name="noroute"/>
</ProxyEndpoint>

Conforming Request:

<note>
  <to>Fred Rogers</to>
  <from>Nick Danger</from>
  <heading>Greetings from my neighborhood</heading>
  <body>Just writing to say hello.</body>
</note>

Non-Conforming Request:

<note>
  <to>Fred Rogers</to>
  <from>Nick Danger</from>
  <heading>Greetings from my neighborhood</heading>
  <body>Just writing to say hello.</body>
  <new>element</new>
</note>

Positive Test:

curl -X POST --header "Content-Type:text/xml;charset=UTF-8" --data @request.xml https://my-test.apigee.net/message-validation-test

Negative Test:

curl -X POST --header "Content-Type:text/xml;charset=UTF-8" --data @bad-request.xml https://my-test.apigee.net/message-validation-test

ark123

Alright Thanks !
