Environment Access
Environments do not support conditional role assignment directly. Rather, access to an environment and its resources is granted via “Access” in the UI or via the Apigee API Environments Set IAM Policy API. Assigning a user as an “Apigee Environment Admin” to an environment (e.g. bu1-test) controls access to environment specific resources such as KVMs, Resource files, TargetServers, References, and KeyStores. It also controls access to deployments and debug sessions for the environment.
Unsupported Resource Types
These resource types do not support “conditional” role based assignment, access to these resources can be managed via built in roles or custom roles.
- Analytics Dashboards
- Custom Reports
- Advanced API Security
- Advanced API Ops
- Integrated Developer Portals
- Integrations
- Connectors
Limitations and Caveats
- Rate Plans
- Rate Plans are associated with an API Product, therefore access can be protected by the API Product name.
- Rate Plans are identified using a UUID; it’s not demonstrated how to apply conditional role assignment.
- App Developers
- Developers are identified using either an email or a UUID; it’s not demonstrated how to apply conditional role assignment.
- Applications
- Although Applications can be restricted by name, The “Apps” list page in the UI performs a “GET /apps?expand=true” API call which returns all the details for an App thereby allowing the user to see any App’s keys.
Overview of Steps
Using GCP IAM Console or GCP APIs:
- Assign Apigee API Admin and Apigee Developer Admin roles to user or group with conditions on role assignment.
- Create and assign a custom role “Custom Role Apigee Deploy and Debug” with get and list permissions for environments and deployments, to users without conditions. This fixes UI errors preventing deployments and debug sessions.
Using Apigee UI or Apigee APIs:
- Assign Apigee Environment Admin “Access” for the user to specific Environments (e.g. bu1-test).
Solution Details
Apigee supports adding resource conditions in IAM policies on specific resource types (proxies, shared flows) used in the Apigee builtin rules through GCP IAM. Not all resource types are “conditional”, in particular Environments. Access to environments is done via “Access” in the UI or via the Apigee API Environments Set IAM Policy API. Assigning a user as an “Apigee Environment Admin” to an environment (e.g. bu1-test) controls access to environment specific resources such as KVMs, Resource files, TargetServers, References, and KeyStores.
Create Custom Role
This is required to allow the user to manage deployments and debug sessions in the Apigee UI. It also enables configuring Flow Hooks, for the assigned environment.
Create a custom role (e.g. Custom Role Apigee Deploy and Debug) that allows get and list permissions on deployments and environments.
apigee.deployments.get
apigee.deployments.list
apigee.entitlements.get
apigee.envgroupattachments.get
apigee.envgroupattachments.list
apigee.envgroups.get
apigee.envgroups.list
apigee.environments.get
apigee.environments.getStats
apigee.environments.list
apigee.operations.get
apigee.operations.list
apigee.projectorganizations.get
apigee.setupcontexts.get
Assign Roles
The Apigee built in roles for Apigee API Admin and Apigee Developer Admin are required for an “API proxy developer” to create and test proxies and shared flows. Apigee API Admin role is required to create API proxies, shared flows and related artifacts such as API Products. Apigee Developer Admin role is required to create Developers and Apps for testing.
Assign Conditions to Assigned Roles
Add the following conditions to both the Apigee API Admin and Apigee Developer Admin role assignments.
- The use of (resource.type == 'apigee.googleapis.com/Developer') allows users to list Developers and their Apps.
- The use of (resource.type == 'apigee.googleapis.com/DeveloperApp' && resource.name.extract('/apps/{name}').startsWith('bu1-')) allows access to named Developer Apps.
NOTE: the resource.name.startsWith() condition uses the name of the project (e.g. apigeex-exp).
resource.name.startsWith("organizations/apigeex-exp/apis/bu1-") ||
resource.name.startsWith("organizations/apigeex-exp/sharedflows/bu1-") ||
resource.name.startsWith("organizations/apigeex-exp/apiproducts/bu1-") ||
(resource.type == 'apigee.googleapis.com/Developer') ||
(resource.type == 'apigee.googleapis.com/DeveloperApp' && resource.name.extract('/apps/{name}').startsWith('bu1-')) ||
resource.type == "cloudresourcemanager.googleapis.com/Project"
- Navigate to IAM & Admin → IAM in the GCP Console
- Add a principal and assign Apigee API Admin role.
- Click the pencil to “Edit principal”
- Click the pencil to add the Condition
Select “CONDITION EDITOR” and paste the condition from above, adjusting “bu1-” to be your resource prefix.
Repeat for the Apigee Developer Admin role.
The final role assignment for the user:
Assign User Access to Environment
Access for users to specific environments is done in Apigee UI or via APIs on the environment. Access to environments is required to allow management of environment specific resources such as Target Servers, KVMs and PropertySets, since these are not named resources and cannot be used in conditional role assignments. Access to environments is also required to manage deployments for the specific environment.

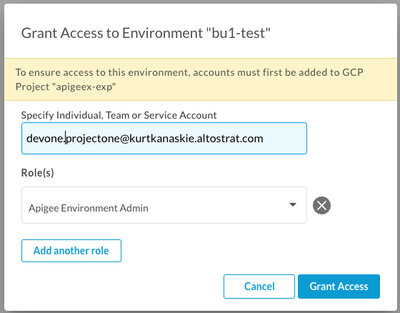

Role assignment in the Apigee Management UI
References
GCP IAM and Roles
Apigee Users and Roles
- Users and Roles Overview
- Add user accounts in the UI
- Adding resource conditions
- Complete list of Apigee API REST resources.
