Understanding the Root Cause of Unexpected System Lag in DataFlow Jobs in gcp

[sgrs]

I am reaching out to seek your insights and advice on an issue we recently encountered with our DataFlow jobs running on Google Cloud Platform (GCP).

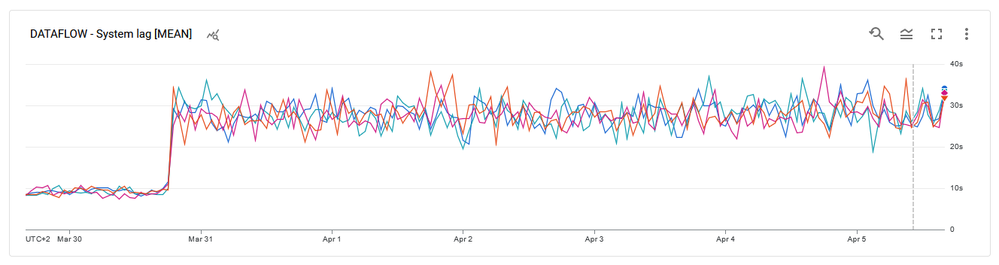

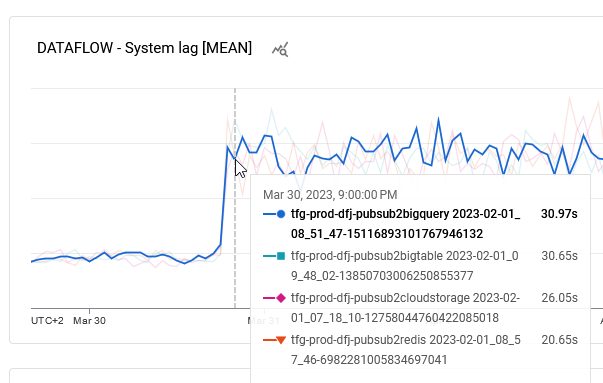

From March 30th to April 14th, we experienced a noticeable increase in system lag across all our DataFlow jobs. This was particularly surprising because these jobs had been deployed in February without any modifications since. Furthermore, we observed no substantial changes in the volume of incoming data during this period.

This unexpected system lag has raised concerns about potential impact on our data in the future. Thus, we are keen on investigating this issue and understanding its root cause.

As a starting point, I would appreciate it if you could guide me on how best to approach this issue. In particular:

What strategies or tools should I consider using to debug this issue? Is there a way to view or analyze the system performance during the aforementioned dates?

Were there any known issues with GCP during this time frame that could potentially have influenced the performance of DataFlow jobs?

Any insights or pointers that can help us mitigate such issues in the future would be greatly appreciated.

[ms4446]

Investigating unexpected system lag in DataFlow jobs involves a multi-step process that includes looking into system metrics, error logs, and possible external factors. Here's how you can proceed:

1. Logs and Metrics Analysis: Google Cloud's operations suite (formerly Stackdriver) provides monitoring, logging, and diagnostics for applications on Google Cloud. It can provide metrics related to CPU usage, network traffic, disk I/O, etc. Look for any unusual patterns in these metrics during the time of the system lag.

2. Job Metrics: DataFlow itself provides a variety of job-specific metrics, like system lag, which can be helpful in identifying issues. You might already be aware of the lag from these metrics, but other related metrics might provide additional context.

3. Error Logs: Check the error logs of your DataFlow jobs. Any exceptions or errors during the processing could lead to system lag.

4. Worker Logs: Inspect the worker logs to see if there's any indication of problems. You can access these logs through the Dataflow monitoring interface in the Cloud Console, or through the Logs Explorer.

5. Job's Data Processing Patterns: Check if there were any changes in the nature of the data being processed. Sometimes, even if the volume of data does not change, the nature of the data could change (like more complex data structures, increased data skew, etc.) which could lead to increased processing time.

6. Pipeline Scaling: Review how your pipeline scaled during this time period. If the autoscaling algorithm decided to allocate fewer workers than needed, it could lead to lag. This could be due to a configuration issue, or it could be a symptom of another problem like a change in data patterns.
