Add new rule in GKE Ingress won't auto-connect to the load balance backend

[ed-bytebase]

Hi there,

My question is adding new rules in GKE Ingress won't auto-connect to the load balance backend, but strangely, all related resources all be auto-created success. Here's the workflow:

Step 1, create a new deployment and make sure it is alive

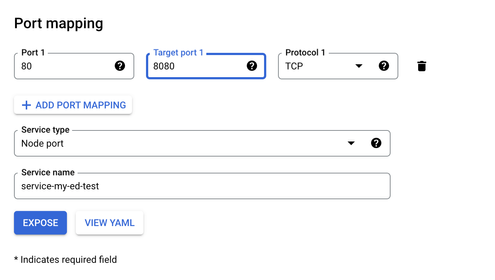

Step 2, expose the deployment as NodePort

Step 3, add this Service to an existing Ingress

Then we can see the backend service for the load balance is successfully created

And the network endpoint groups are also created

But they're not connected to the load balancer, and I have to do this manually

Does anyone have any idea about this?

Sincerely,

Ed

[jamesaaron]

Hello @ed-bytebase

Can you include the deployment, service and ingress yaml that you are using so we can see how they are set up together? Kindly redact any sensitive information that these files have.

Sincerely,
James

[ed-bytebase]

Hi @jamesaaron  , here's the YML config

(BTW we're using GKE to provider our SaaS service, we will create 1 Deployment for 1 tenant, and the Deployment will have 1 NodePort Service, and multiply Services will share 1 Ingress with different rules)

For example, we have a tenant with ID 4u5z93wr,

The deployment YML for the tenant:

apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "1"
  creationTimestamp: "2023-03-18T07:48:03Z"
  generation: 1
  labels:
    tenant: pool
    version: 1.14.0
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: 4u5z93wr
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: 4u5z93wr
        timestamp: "1679125683"
    spec:
      containers:
        image: bytebase/bytebase:1.14.0
        imagePullPolicy: Always
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 300
          periodSeconds: 300
          successThreshold: 1
          timeoutSeconds: 60
        name: bytebase
        ports:
        - containerPort: 8080
          name: http
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 300
          periodSeconds: 300
          successThreshold: 1
          timeoutSeconds: 60
        resources:
          limits:
            cpu: 250m
            ephemeral-storage: 400M
            memory: 512Mi
          requests:
            cpu: 250m
            ephemeral-storage: 400M
            memory: 512Mi

The service YML for the tenant:

apiVersion: v1
kind: Service
metadata:
  annotations:
    cloud.google.com/neg: '{"ingress":true}'
    cloud.google.com/neg-status: '{"network_endpoint_groups":{"80":"k8s1-74c3cd43-default-service-4u5z93wr-80-3cf1182c"},"zones":["us-central1-a","us-central1-b"]}'
  creationTimestamp: "2023-03-18T07:55:15Z"
  labels:
    tenant: 4u5z93wr
spec:
  clusterIP: 10.12.131.57
  clusterIPs:
  - 10.12.131.57
  externalTrafficPolicy: Cluster
  internalTrafficPolicy: Cluster
  ipFamilies:
  - IPv4
  ipFamilyPolicy: SingleStack
  ports:
  - nodePort: 30326
    port: 80
    protocol: TCP
    targetPort: 8080
  selector:
    app: 4u5z93wr
  sessionAffinity: None
  type: NodePort
status:
  loadBalancer: {}

And the Ingress config:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    kubernetes.io/ingress.global-static-ip-name: bytebase-ip-01
  name: bytebase-ingress-01
  namespace: default
spec:
  rules:
  - host: 4u5z93wr.us-central1.bytebase.com # for tenant 4u5z93wr
    http:
      paths:
      - backend:
          service:
            name: service-4u5z93wr
            port:
              number: 80
        pathType: ImplementationSpecific
  - host: 94xbo23h.us-central1.bytebase.com # for another tenant
    http:
      paths:
      - backend:
          service:
            name: service-94xbo23h
            port:
              number: 80
        pathType: ImplementationSpecific
  # and many other rules for different tenant
  tls:
  - secretName: bytebase-ssl-01
status:
  loadBalancer:
    ingress:
    - ip: xxx
