External mutual TLS B2B Webhook

[jrw]

Hello,

I have the following issue, I have been asked to create a web-hook that is business to business and is called when a event happens. The authentication needs to be mTLS  and is called from a external client running on prem.

We are using GKE Autopiliot with a ingress controller as shown below, I am so confused why this is not working and would love some help.

apiVersion: "networking.k8s.io/v1"
kind: "Ingress"
metadata:
  name: "service_ingress_controller"
  annotations:
    networking.gke.io/managed-certificates: managed-cert
    kubernetes.io/ingress.allow-http: "false"
    ingress.kubernetes.io/ssl-redirect: "true"
    ingress.kubernetes.io/secure-backends: "true"
    ingress.kubernetes.io/force-ssl-redirect: "true"
    nginx.ingress.kubernetes.io/auth-tls-verify-client: "false"
    nginx.ingress.kubernetes.io/auth-tls-secret: "mtlsserver"
    nginx.ingress.kubernetes.io/auth-tls-pass-certificate-to-upstream: "true"
    nginx.ingress.kubernetes.io/auth-tls-verify-depth: "1"

spec:
  tls:
   - secretName: mtlsserver
  rules:
  - host: "domain.com/incoming/external"
    http:
      paths:
      - pathType: "ImplementationSpecific"
        path: /*
        backend:
          service:
             name: "service-transaction"
             port:
              number: 443
---
apiVersion: v1
kind: Service
metadata:
  name: service-transaction
  labels:
    run: service-transaction
  annotations:
    cloud.google.com/app-protocols: '{"my-https-port":"HTTPS"}'
spec:
  type: NodePort
  selector:
    app: service-transaction
  ports:
  - name: my-https-port
    port: 443
    targetPort: 50000
    protocol: TCP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: service-transaction
  name: service-transaction
spec:
  selector:
    matchLabels:
      app: service-transaction
  strategy: {}
  template:
    metadata:
      labels:
        app: service-transaction
    spec:
      terminationGracePeriodSeconds: 30

      containers:
        - image:  image
          name: service-transaction
          imagePullPolicy: Always
          resources:
            requests:
              memory: "512Mi"
              cpu: "250m"
            limits:
              memory: "512Mi"
              cpu: "250m"
          ports:
           - containerPort: 50000
             name: transaction

 Any help is appreciated, thanks,
JRW

[Marvin_Lucero]

Hi @jrw ,

---

@jrw wrote:

I have the following issue, I have been asked to create a web-hook that is business to business and is called when a event happens. The authentication needs to be mTLS  and is called from a external client running on prem.

---

Are there any related error messages that you can share? Screenshots?

Also, can you share any guides or documentations prior to your initial setup? Just incase you happen to have one. Thanks!

[jrw]

Hi Marvin,

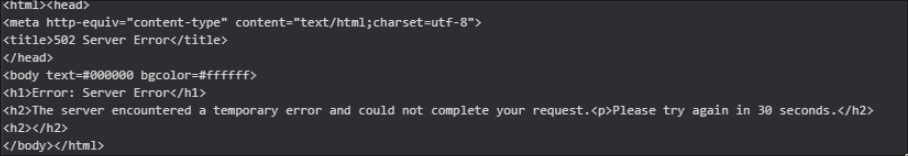

I get the following error upon request and my pod health status in the ingress controller is always returning unhealthy:
These are the only two errors I am getting.

I could not find a guide on doing this just scattered documentation from multiple sources.

[Marvin_Lucero]

Hi @jrw ,

Based from the app.yaml that you have shared, you are getting this issue because you don't have the health check configured for your service. To resolve this issue you need to have a health check for your backends because load balancer verifies if the backends are in a healthy state or not. I suggest you create a "BackendConfig" for health check using this guide. After creating the health check configuration "BackendConfig" add the annotation below in the service yaml file.

cloud.google.com/backend-config: '{"default": "my-backendconfig"}
