How to verify TLS version used by Cassandra in Apigee Hybrid for internode, intranode, interpod and

[azharali49]

• In Apigee Hybrid, Cassandra's TLS and cipher suite choices are dictated by the JVM it uses.
• Java will negotiate the highest supported protocol between the server and client, typically TLS v1.3 for internode and interpod communication, as well as between runtime and synchronizer.
• For user-setup operations we do not specify the protocol version. Instead, we rely on default configuration, which attempts to negotiate the highest protocol version available.
• For backup and restore pods, we use cqlsh to establish an SSL connection with the Cassandra server. cqlsh leverages Python's SSL package, which also negotiates the highest TLS protocol version available.
• Upon starting Cassandra, the logs indicate the enabled TLS protocol versions:

INFO [main] 2024-06-01 13:14:12,381 YamlConfigurationLoader.java:97 - Configuration location: file:/opt/apigee/apache-cassandra-4.0.11/conf/cassandra.yaml
INFO [main] 2024-06-01 13:14:12,825 SSLFactory.java:521 - Internode messaging enabled TLS protocols: TLSv1, TLSv1.1, TLSv1.2, TLSv1.3
INFO [main] 2024-06-01 13:14:12,826 SSLFactory.java:524 - Internode messaging enabled cipher suites: TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256, TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384, TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA, TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA, TLS_RSA_WITH_AES_128_GCM_SHA256, TLS_RSA_WITH_AES_128_CBC_SHA, TLS_RSA_WITH_AES_256_CBC_SHA, TLS_AES_128_GCM_SHA256, TLS_AES_256_GCM_SHA384, TLS_CHACHA20_POLY1305_SHA256

• To verify the TLS version used by Cassandra, you can use the openssl s_client command against various ports

# kubectl get po -n apigee -o wide -l app=apigee-cassandra
NAME READY STATUS RESTARTS AGE IP
apigee-cassandra-default-0 1/1 Running 0 39h x.x.x.x
apigee-cassandra-default-1 1/1 Running 0 39h y.y.y.y
apigee-cassandra-default-2 1/1 Running 0 38h z.z.z.z

• Example commands to check TLS versions

# openssl s_client -connect x.x.x.x:7001 -tls1_2
# openssl s_client -connect x.x.x.x:7001 -tls1_3
# openssl s_client -connect x.x.x.x:7070 -tls1_2
# openssl s_client -connect x.x.x.x:7070 -tls1_3
# openssl s_client -connect x.x.x.x:7199 -tls1_2
# openssl s_client -connect x.x.x.x:7199 -tls1_3
# openssl s_client -connect x.x.x.x:9042 -tls1_2
# openssl s_client -connect x.x.x.x:9042 -tls1_3
# openssl s_client -connect x.x.x.x:9142 -tls1_2
# openssl s_client -connect x.x.x.x:9142 -tls1_3

• Use these commands to ensure that the highest possible TLS version is being used for secure communication within your Apigee Hybrid deployment.
• In a similar way you can enter anyone cassandra pod and verify TLS version using openssl commands.

[dchiesa1]

Thanks for this. a copuiple questions.

1. is this accurate?

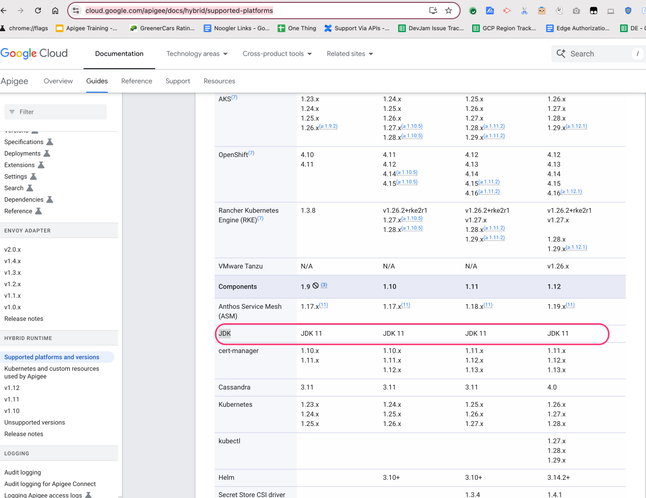

Cassandra's TLS and cipher suite choices are dictated by the JVM it uses, which is currently Java 1.7.

Is it not Java 11?

https://cloud.google.com/apigee/docs/hybrid/supported-platforms

2. is there a way to restrict the TLS version to a subset, for example TLS v1.2 or TLSv1.3, to the exclusion of TLSv1.1 and TLSv1 ?   And similar question regarding the ciphersuites. I know this is possible in Java. How is it done in Apigee hybrid for the Cassandra nodes?

[azharali49 · Accepted solution]

• Thank you for your reply.
• The details of Java Version is as below from Apigee Hybrid 1.12 test setup;

• # helm version
  version.BuildInfo{Version:"v3.15.1", GitCommit:"e211f2aa62992bd72586b395de50979e31231829", GitTreeState:"clean", GoVersion:"go1.22.3"}

  # kubectl version
  Client Version: v1.29.5
  Kustomize Version: v5.0.4-0.20230601165947-6ce0bf390ce3
  Server Version: v1.29.6-gke.1038001

  # java -version
  openjdk version "1.8.0_422"
  OpenJDK Runtime Environment (build 1.8.0_422-b05)
  OpenJDK 64-Bit Server VM (build 25.422-b05, mixed mode)

  # kubectl -n apigee exec -it apigee-runtime-azharshaikh-hyb-envtesthybrid-xx-yy-zz -- java --version
  openjdk 11.0.22 2024-01-16
  OpenJDK Runtime Environment (build 11.0.22+7-post-Debian-1deb10u1)
  OpenJDK 64-Bit Server VM (build 11.0.22+7-post-Debian-1deb10u1, mixed mode, sharing)

• Currently, there are no configurable parameter for TLS protocol version in Cassandra for Apigee Hybrid.
