Grouping by user and activity type, and show graph

[mtiraferri]

Hallo, it's my first appSheet experience, I need to track operator activity, the idea was to use google form + google sheet + google app script, but appSheet seem to be more friendly for user .

The goal is to let the user to track the activity time and type on the fly, and be  aware when he/she is near to the limit for an acivity type. At the moment this tracking is on paper monthly!

So i create a minimal testing appSheet project, where the operator can see his records

and add new records

Data are stored in a google spreadsheet

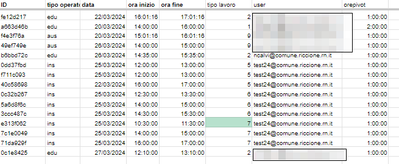

the record sheet called TESTDATA

The operator table called UTENTI, at every operator is assigned the operator type

the activity type sheet called TIPILAV, where the activity tipe is coded, and associated to a operator type

The appsheet let the operator insert only the activity type assigned to his operator type.

What i'm missing is a way to give the operator a quick view of the hour spent in every activity type and, of course, try to not overcome the limit.

I was thinking  to add a limit column to the TIPILAV sheet, but first i'm tryng to get a graph to show the total hours for activity type, but despite my search in this forum the result is not satisfying.

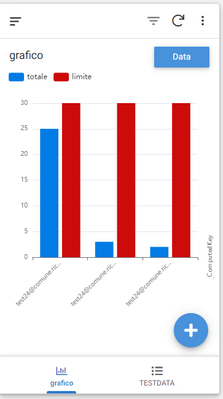

This is my best result

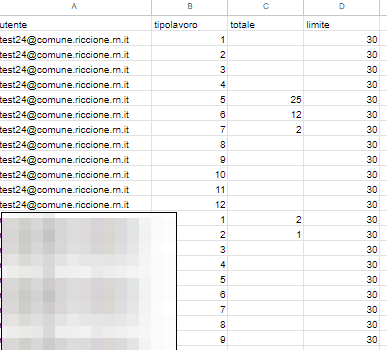

reached after hard coding a sheet called PIVOT to summarize every activity type for any operator, in future i  could update this table using google app script, but as there are about 100 operators and 30 activity type it will be a heavy sheet.

The tag in the bar is the operator email, I'd like it to be the actyvity type name.

the questions are:

1) how to get subtotal for activity type without create the PIVOT sheet, if possible

2) how to set actyvity type as tag in the orizontal axis

Sorry for my english, and thank's for any suggestion!

Marco

[mtiraferri]

I found solution for the question number 2, a simple edit to the computed column formula done the job!

Still working to find a solution to have group totals as in this example

Of course the various activity type (tipo lavoro) may be mixex.

[mtiraferri · Accepted solution]

Found solution for question number one,

The PIVOT table manually filled to test the graph now is filled by query and filter formula!

=QUERY(TESTDATA!A:H,"select G,F, SUM(H) WHERE G<>'' group by G,F")

This query sum hours grouping by user and activity type and give me the subtotals i need for chart.

=FILTER({PIVOT!B2:B,VLOOKUP(PIVOT!B2:B, {TIPILAV!A2:A,TIPILAV!B2:D}, {4}, false)}, PIVOT!B2:B<>"")

This filter let me associate the limit to any total, so the user can be aware when he is  reacing the boundary

This is the "PIVOT" table resulting.

Hope this can help someone 🙂
