How to get individual Inline Views for custom REF_ROWS() columns?

[WillowMobileSys]

Is this a bug?

I have a Goal on which I list 3 Tracking types - Completion Rate, Time Spent and Satisfaction Score. Each day 3 new Tracking rows with their daily values are inserted for this Goal.

Currently, there is a Goal Tracking table for entered daily Tracking type rows and the Goal Detail View is showing an Inline Table with all of the Goal Tracking entries - (in this example 21 rows - 3 row over 7 days)

In the Goal record, I ALSO want to be able to show an individual chart for each of these Tracking items.

In attempts to accomplish this, I created 3 Slices filtering ALL Goal Tracking rows by the Tracking Types. I then added 3 Virtual Columns to further filter these slices into lists for that Goal. The expression in these VC’s are similar to:

REF_ROWS("Completion Trackings", "Goal")

When I view each of the Slices data, they are shown properly filtered.

When I display the Virtual Column lists in the Goal Detail view, the counts in the inline tables reflect the correct expected number of rows - 7 rows per Tracking Type.

HOWEVER, the actual list displayed in these custom lists is all of the rows for that GOAL - i.e. the same 21 rows in the original Inline table - AND the View used is based on the base Goal Tracking Table not the Slices.

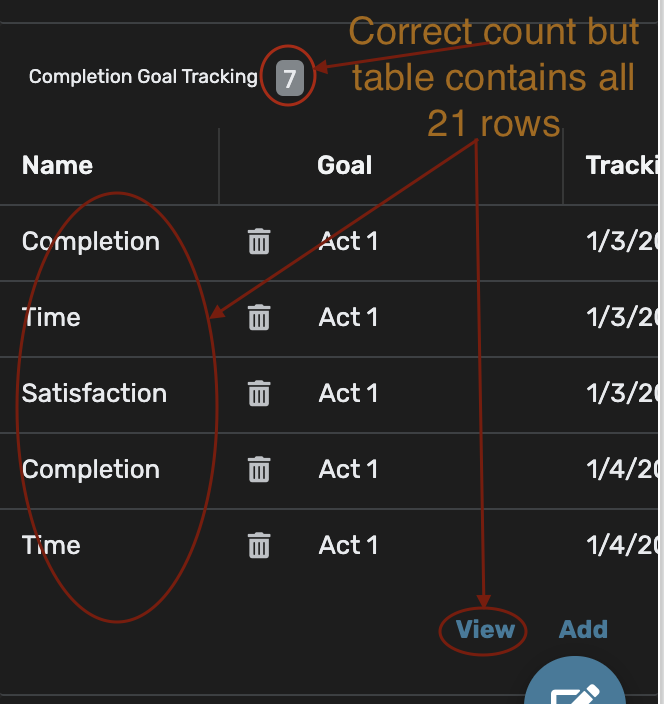

Inline View for Completion Rate Tracking rows

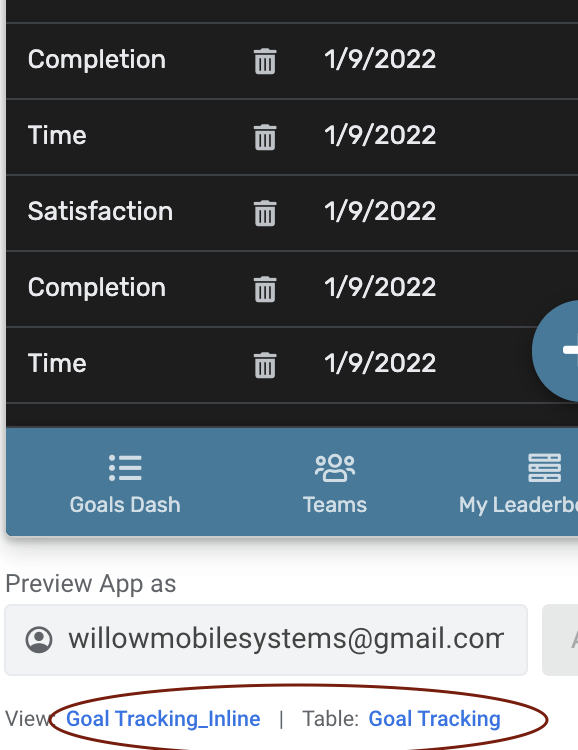

Tapping View Button - Original view and table - not based on Slice as the datasource?

• Am I doing something wrong for my custom Virtual columns?

• How do I get them to use System Inline Views or my own Views based on the Slices?

[Marc_Dillon · Accepted solution]

How do you have this field set for your new REF_ROWS VC?

[WillowMobileSys]

Marc_Dillon:

How do you have this field set for your new REF_ROWS VC?

Thank you!! Of course it’s something simple…I looked at this several times yesterday and I didn’t even notice that it was the base table and not the Slice. Thank you for pointing it out!!

Lesson learned - don’t watch NFL football and code at the same time!!!

[SkrOYC]

WillowMobileSystems:

Lesson learned - don’t watch NFL football and code at the same time!!!

Haha, that’s a good one.

BTW, It happends when you change the dataset of a REF_ROWS() expression.
If it’s done from the first time pointing to the Slice, AppSheet editor takes the right dataset (table/slice). When you change it, you have to make sure to also do it down there

[SkrOYC]

WillowMobileSystems:

How do I get them to use System Inline Views or my own Views based on the Slices?

That’s why I hate system views and everything system-created.
Can you post here your column config as @Marc_Dillon said? I was about to point that out because I had problems with it in the past

[WillowMobileSys]

SkrOYC:

That’s why I hate system views and everything system-created.

Don’t think this way. We take for granted System views way more than you probably realize. Besides, in this case, it’s not the System views that were at fault.

When I created the custom Virtual Columns, I originally used my own SELECT statement on the base table. I then realized I needed Slices and can use REF_ROWS. I updated the columns but the base table did not change. I needed to do that manually. Doh!

[SkrOYC]

I get it, they are powerful nonetheless.
I just have problems with system-created but it doesn’t apply in this case.
Happy you solved the problem!
