How does Google SOAR decide whether a entity is internal or external?

[MarinusC]

Hello all,

we are struggeling with the "IsInternalAsset" entity configuration.
We mapped a field in the ontology configuration to "DestinationDomains", which in my opinion should be an external Entity.
However, if you open a “DestinationDomains” entity in a case, it will appear as “IsInternalAsset” = “True”.
Can anybody help or knowns how to configure an entity as internal or external?

Thanks a lot!

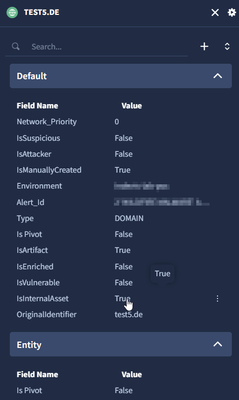

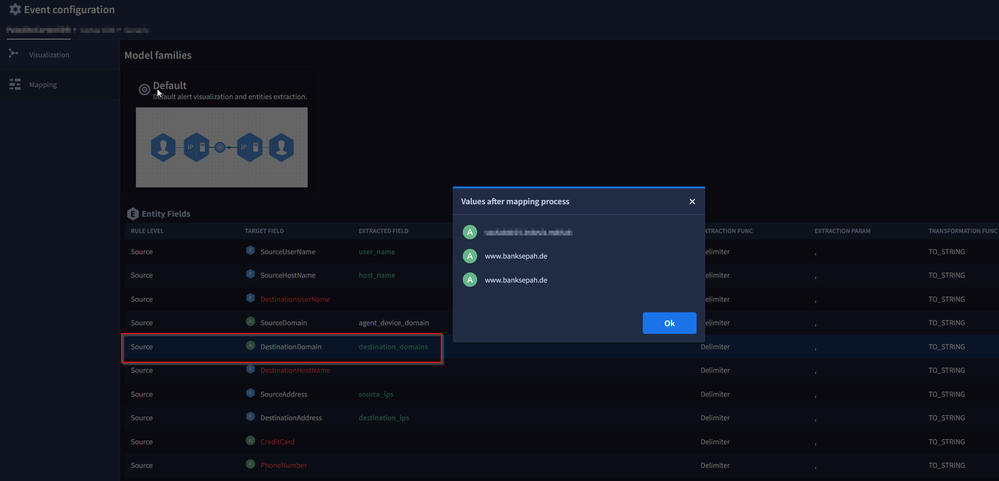

Some screenshots:

[mikewilusz]

These can be configured under SOAR Settings -> Environments -> Networks/Domains.

-mike

[MarinusC]

Hi Mike,

Thank you for your reply, but I think you have misunderstood my question and I have not expressed myself clearly enough.

I am familiar how to configure internal Domains/IP´s you mentioned, but we are struggeling to get our Entity listed as external Entity.

We figured out, that the "IsInternalAsset" field is directly connected to the Location (you can see this in the Entity SOAR Search). Is the value true, the location will be internal (false = external).

All examples are based now on the Entity Type Domain, but we experience the same issue with other Entity Types.

Some strange findings:

1. You can not change the Value from "False" to "True" or the other way around in the Entity Explorer. If you click save, a successfull message will appear, but nothing changes. (for example for Host Names , this is working)

2. You can change in the case the "IsInternalAsset" value of an Entity if you click on "View Details" and edit it. But this will not affect the Entity in the Entity Explorer.

3. If you add an Entity to an case by manual and do not check the checkbox "Mark as Internal" the "IsInternalAsset" is set to True. Is every Domain set to Internal by default? Can that be changed?

Over all:

Every new Domain Entity is getting Internal and we can not change them to external afterwards.

I hope everything is clear now.

Thank you!

Marinus

[f3rz · Accepted solution]

Artifacts are always internal by design:

Note: Artifacts are always internal and are always displayed as a color-filled circle:
https://cloud.google.com/chronicle/docs/soar/investigate/working-with-cases/explore-entities-and-ale...

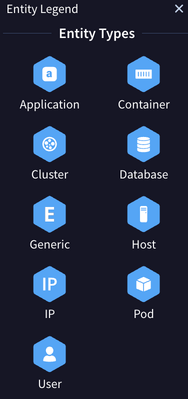

Here's a list of artifacts (that are always internal) and entities (that can be both external and internal):

You can find it in Entity Legend in Entity Explorer.

Also, there's a feature request to change this behaviour: https://issuetracker.google.com/316065464

[maxjunker]

I would be also interested in the answer as I don´t know if this is a bug or a misunderstanding
