SOAR API endpoint - api/external/v1/logging/python

[_jc_]

Hey everyone!

Has anyone had success with using this API endpoint on Chronicle SOAR to get Connector logs?

/api/external/v1/logging/python

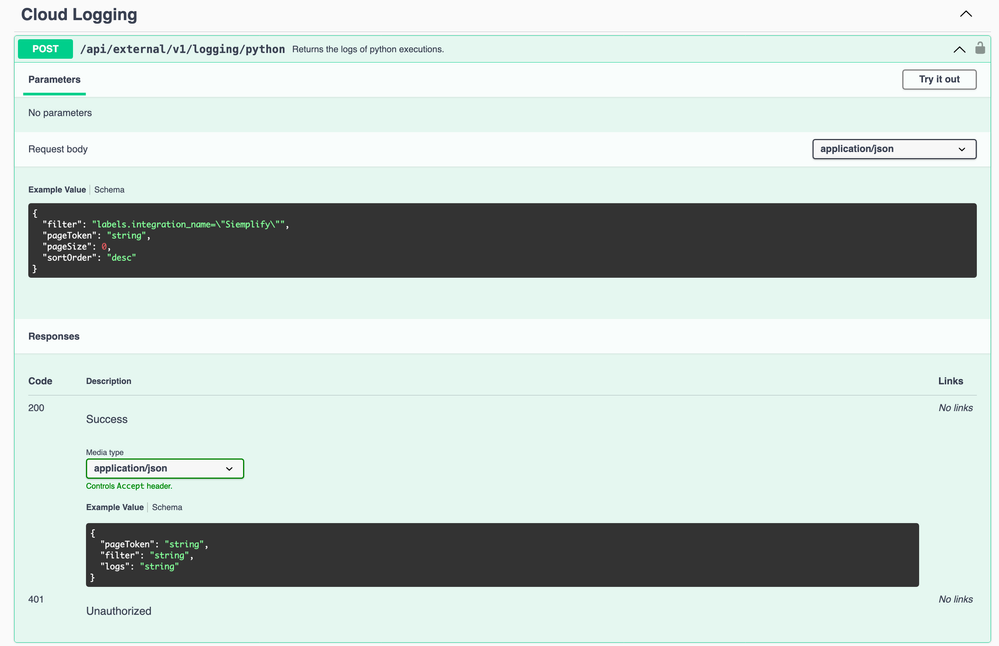

It's visible under Cloud Logging in Swagger. Swagger references the following sample config:

  "filter": "labels.integration_name=\"Siemplify\"",  "pageToken": "string",  "pageSize": 0,  "sortOrder": "desc"

I've been trying to adapt this to get my config working.

{ "filter": "labels.connector_name=\"My Exchange Mail Connector v2 with Oauth Authentication\"", "pageToken": "string", "pageSize": 0,"sortOrder": "desc" } '

In all instances, including just using the sample config, I get a 400 Bad Request error. Is there any documentation surrounding the data structures that we can use in that filter anywhere, or any instances where anyone has got a working configuration?

Thought I'd check in on this before going to Support.

[EricMalzahn]

Did you try without the pageToken setting?

[ragnar]

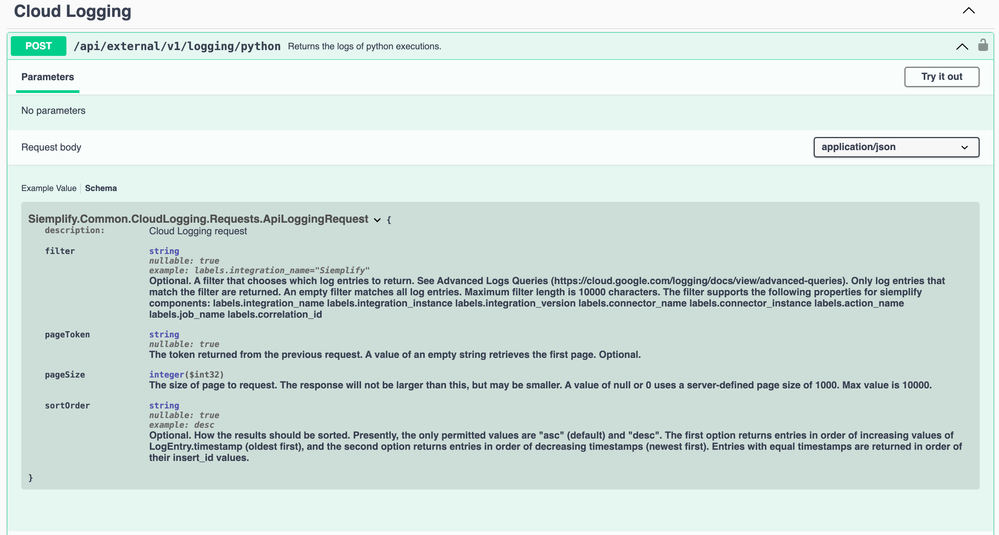

Here the Chronicle SOAR Logging API

Description of Parameters:

description: Cloud Logging request

filter	(string)
	- nullable: true
	- example: labels.integration_name="Siemplify"
	- Optional. A filter that chooses which log entries to return. See Advanced Logs Queries ( https://cloud.google.com/logging/docs/view/advanced-queries). Only log entries that match the filter are returned. An empty filter matches all log entries. Maximum filter length is 10000 characters. The filter supports the following properties for siemplify components: labels.integration_name labels.integration_instance labels.integration_version labels.connector_name labels.connector_instance labels.action_name labels.job_name labels.correlation_id

pageToken (string)
	- nullable: true
	- The token returned from the previous request. A value of an empty string retrieves the first page. Optional.

pageSize (integer($int32))
	- The size of page to request. The response will not be larger than this, but may be smaller. A value of null or 0 uses a server-defined page size of 1000. Max value is 10000.

sortOrder (string)
	- nullable: true
	- example: desc, asc
	- Optional. How the results should be sorted. Presently, the only permitted values are "asc" (default) and "desc". The first option returns entries in order of increasing values of LogEntry.timestamp (oldest first), and the second option returns entries in order of decreasing timestamps (newest first). Entries with equal timestamps are returned in order of their insert_id values.

Python3 Sample Request Script:

# Imports
import requests
import json

reqUrl = "https:/{Chronicle_SOAR_Platform_BASE_Domain_TLD}/api/external/v1/logging/python"
headersList = {
"User-Agent": "REST Client",
"AppKey": "{Chronicle_SOAR_API_KEY}",
"Content-Type": "application/json"
}
payload = json.dumps({
"filter": "labels.integration_name=\"{integration_name}\"",
"filter": "labels.integration_instance=\"{integration_instance}\"",
"filter": "labels.integration_version=\"{integration_version}\"",
"filter": "labels.connector_name=\"{integration_connector_name}\"",
"filter": "labels.connector_instance=\"{connector_version}\"",
"filter": "labels.action_name=\"{integration_action_name}\"",
"filter": "labels.job_name=\"{integration_job_name}\"",
"filter": "{}",
"pageSize": 0,
"sortOrder": "desc",
"pageToken": ""
}
)
# use any one of filter for request,
# parsing pageToken=""  for first request, update the value if response contain value for iteration of request.

response = requests.request("POST", reqUrl, data=payload, headers=headersList)
return response

CURL Request Sample:

curl -X 'POST' \ 'https:/{Chronicle_SOAR_Platform_BASE_Domain_TLD}/api/external/v1/logging/python' \ -H 'accept: application/json' \ -H 'AppKey: {Chronicle_SOAR_API_KEY}' \ -H 'Content-Type: application/json' \ -d '{ "filter": "labels.integration_name=\"Siemplify\"", "pageToken": "", "pageSize": 0, "sortOrder": "desc" }'

Happy Hunting.
